€293.000,00
NEW
Working time: 0 hour
Year of build: 2014
For “French fries and corn”
The fluidised bed freezer is supplied in pre-assembled units for a reduced installation time.
Belt cleaning system
Belt cleaning system, mounted inside the insulating enclosure, to foam and rinse the belt, comprising:
pump unit: approx. 3.0kW, 230/00 V, 50 Hz
water: 4 bar, 6 m3/h
compressed air: 6 bar, 200NL/min., oil-free
Camera system for monitoring process area
Camera system for monitoring process area, comprising:
*) After discharge and product-specific temperature equalization, the product temperature in the product is measured in a completely insulated testing container.
The above product data are experience values. Due to products with variable consistency, deviations to the stated product data are possible.

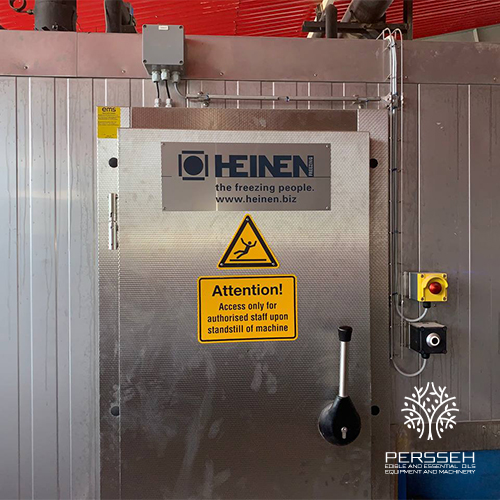

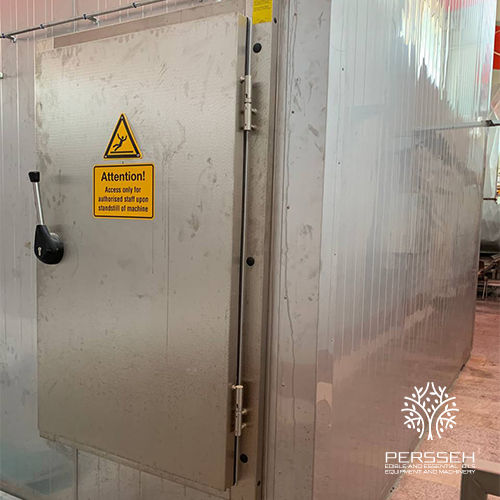

Fluidised bed freezer freezelite | f15 |
---|---|
Technical type identifier | FF 08-03-15 S |
Infeed height | 2350 mm |
Discharge height | 1940 mm |
Belt drive power | 1×0.25 kW |

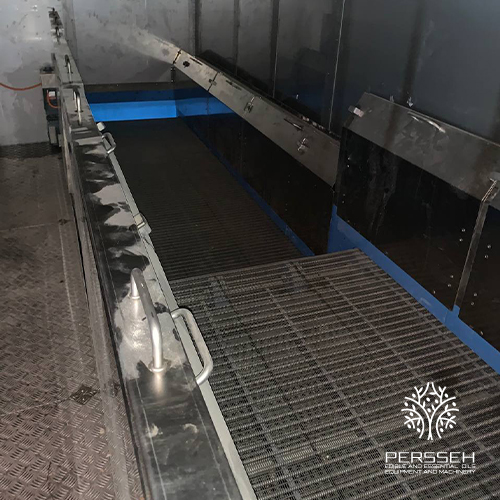

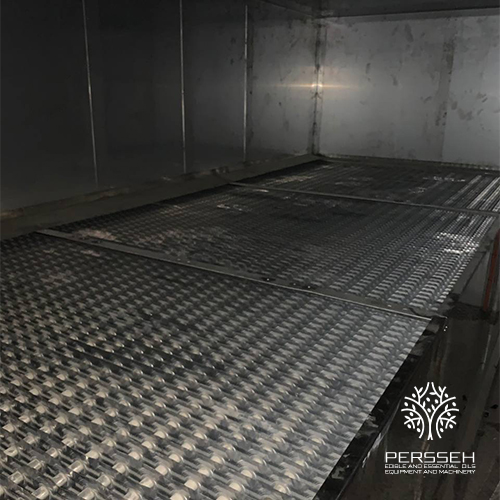

Belt type | Stainless steel link belt |
Usable belt width | 800 mm |
Number of air cooler | 1 |
Surface | approx. 1.100 m2 |
Pipes / fins | Stainless steel / aluminum |
Defrosting | Manual, by hot gas or air |
Air temperature | approx. -30°C |

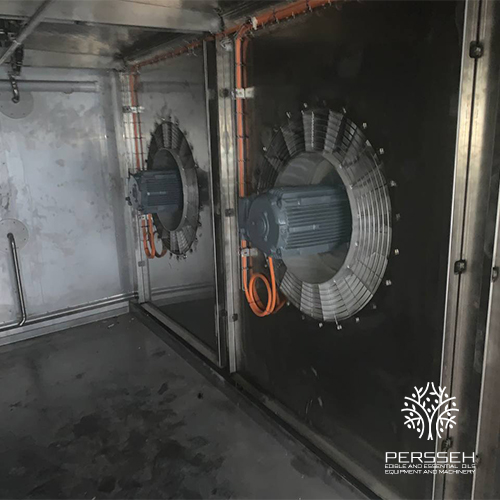

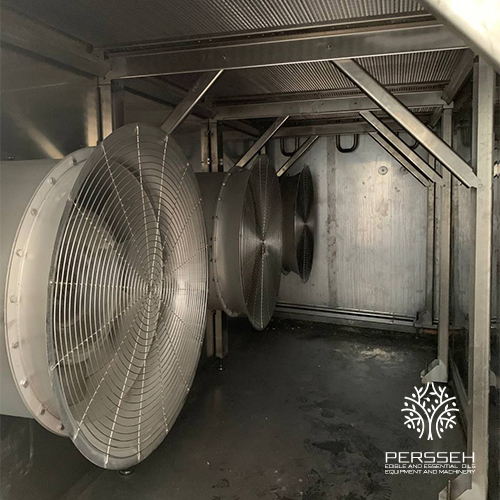

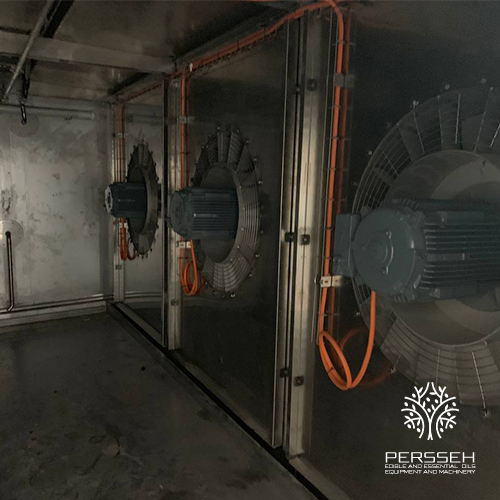

Number of fans | 3 |
Effective capacity | approx. 3 x 9 = 27 kW |
Total refrigeration capacity installed | 200 kW |
Refrigerant | R404-DX |
Evaporation temperature | -40 °C (measured by sensor on air cooler suction side socket) |
Overheating of refrigerant | 5 K |
Temperature of liquid before expansion valve | +0 °C |
Interface air cooler | Open end of pipe at the air cooler inside the insulating case |
Hot gas | t>45 °C and a corresponding pressure which ensures a temperature of +10 °C on the air cooler surface |
Power consumption freezer | approx. 27 kW (without options) |
Connected load freezer | approx. 34 kW (without options) |
Supply voltage | 230 / 400 V, 3 Ph, 50 Hz |
