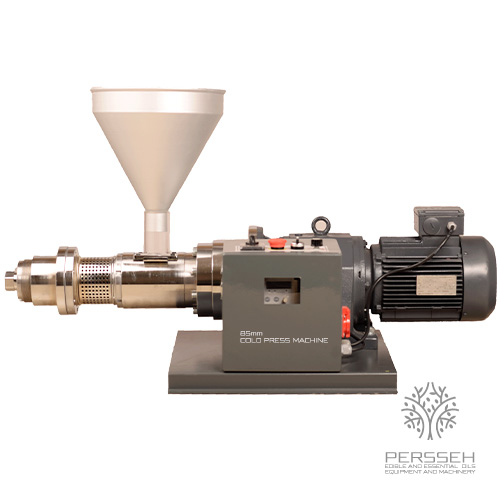

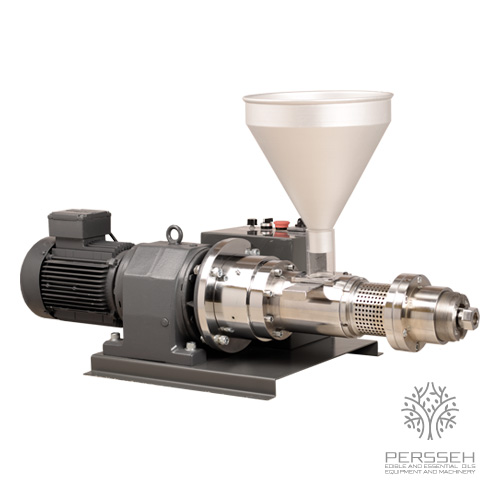

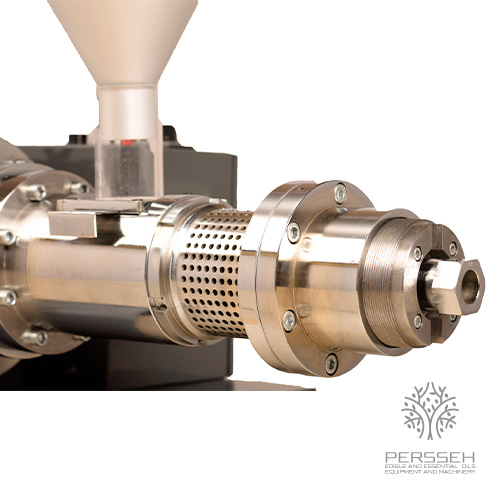

Cold press machine 85mm

Name: Cold press machine 85mm
SKU: Cold press 85mm
Availability: InStock

Price range: €6.150,00 through €7.900,00

PERSSEH Cold press machine 85mm is the greatest cold press in the first generation of PERSSEH machines. This model is capable of extracting oil from all kinds of seeds and we can mention its pellet shape cake as an advantage. This machine is the best choice for pomegranate seed, date, and grape seed. This model is powered by a Nord Gear motor and Contains Japanese bearing that supports it in tolerating axial and radial forces.

Delivery

Clear

SKU: Cold press 85mm Categories: Cold press machines, Machineries

Cold press machine 85mm

PERSSEH Cold press machine 85mm is designed for operation in hypermarkets and oil stores, pharmaceutical companies, farms, etc. This machine has the ability to press all types of oilseeds.
The model name of this machine is taken from the inside diameter of the press part.

How to work…

The method of work in this machine is the cold press so that in this method the oilseed is pressed. As a result of applying this pressure, the oil in the seed is separated from it, and oil extraction is performed without adding any additives to the produced oil. The device is designed and manufactured in such a way that the oil outlet temperature during the oil extraction process is lower than 45 ° C. Experiments show that the oil produced in the cold press method is completely virgin and natural, all the benefits of the oilseed remain in the oil and the tissue molecules of the oil are not damaged. This method is called cold press (cold oil press – cold pressing – cold press oil extraction).

Unparalleled efficiency

With PERSSEH Cold press machine 85mm, raw oilseeds can be pressed by the cold press without any additives so that the output oil has all the benefits of oilseeds. Depending on the type, quality, and size of the seeds, the machine can have a maximum input of 40 kg.

Easy operation, quiet with easy maintenance

Easy operation and being user-friendly is undoubtedly some of the main factors in the popularity of this cold press machine. Since most buyers of this device work in small spaces, shops, and hypermarkets, small workshops, the simplicity of operation and maintenance of the device is very important.

No need to add moisture to the seeds

For oil extraction of sesame and other seeds, there is no need to add moisture to the oilseed.

Ability to press all hard and soft seeds

Easy adjustment

Another factor in the popularity of this device is the easy adjustment and commissioning for oil extraction from oilseeds. For example, the settings of the machine for oiling sesame are different compared to almond seeds. The reason for this difference is the difference in grain type, size, and percentage of oil in the seed, and so on. The 85 mm cold press machine is engineered in such a way that the operator can easily produce the desired oil.

For example, sesame seed, which has about 50 percent oil, compared to pomegranate seed, which has less than 10 percent oil. The pressure that is applied to the machine in oiling from pomegranate seed is much more than sesame seeds.

This pressure is transmitted to the press part of the device, gearbox, and electric motor. Cold press machine 85mm is designed and manufactured in such a way that it can continuously (24 hours) press even the hardest grains such as pomegranate seed and grape seed.

Adjustable working speed between zero and 50 Hz using an inverter

The operating speed of this device is adjustable. The use of inverter in the design of this device has made the operator easily adjust the speed of the device from zero to 50 Hz, and this issue is very necessary for pressing various grains.

The rotation speed of the motor is regulated by an inverter, which varies from zero to 50 Hz. This makes it possible to achieve maximum yields for different oilseeds by adjusting the speed. Also, the use of inverter has caused the energy consumption of the device to be very low. With the cold press machine 85mm, the pressure of the press can be mechanically adjusted by press parts setting and using different nozzles. The device is designed so that these changes are as simple as possible compared to other similar devices.

Other features of PERSSEH cold press machine 85mm

– Very low power consumption
– Possibility of 24-hour operation
– Adjustable working speed between zero and 50 Hz using an inverter
– Emergency shutdown in the event of abnormal pressure
– Beauty in design, and easy to move
– Use of authentic and high-quality German parts with a hardness of 60 Rockwell
– Powerful electric motor and gearbox
– High lifetime and negligible depreciation

WATCH MORE VIDEOS ON THE PERSSEH’S YOUTUBE CHANNEL

Name	Cold press machine 85mm
Machine type	Cold press
Cylinder Diameter	85 mm
Design type	Screw Extruder
Cake Shape	As a pallet
Nominal Feeding Capacity	40 kg/h
Engine Power	2.2 kW
Voltage	230 V, single phase
Rpm (revolutions per minute)	5-60 ¹/min
Dimensions (LxWxH)	1150480750 mm
Weight	95 kg
Electrical Power Consumption	At rated power (Rapeseed) approx. 1.4 kW/h
Extra Options	Hopper can be equipped with a metal detector Power outages occur when the feeding hopper is empty Digital temperature controller Glass hopper Oil drain tray
Applicable for	Rapeseed, Sunflower Seed, Black seed, Soybean, Linseed, Pleasure of Gold, Pumpkin Seed, Walnut, Almond, Pistachios, Poppy Seed, Rubberseed, Loofah, Potato Chips, Kahai, Safflower, Candlenut, Marula, Chia, Moringa, Soldier Fly Larvae, Black Cumin, Apple Seed, Sesame Seed, Karitè/Shea, Peanut, Jatropha/Physic Nut, Hemp, Milk Thistle, Hazelnut, Walnut, Sea Buckthorn, Lemon Seed, Elderberry Seed, Evening Primrose, Pomegranate Seed, Grape Seeds, Mustard, Argan, Cottonseed and so on.
Components	Electrical Switch Board Gear Motor (SEW) Motor (SEW, 2.2 kW) Press Parts: Standard Screw Press, Standard Sieve Basket, Pre-jet with intake, Nozzles (7 Sizes) Heating Equipment, Special Tools
Advantages	Virgin oil extraction without solvents and refining methods Configured to press a variety of oil seeds and nuts High efficiency Compatible with the different climatic condition Easy adjustment for different seed types No need to add moisture or any external additive Long lifetime Easy to take apart and clean Silent operation Low-cost preservation Digital temperature control system Emergency stop system Low electrical energy consumption The residual oil content of cake up to 6% Shell shape cake output Adjustable operating pressure Capable of running 24/7
Guarantee	12 months
Delivery	Türkiye, Germany
