€5.510,00 – €6.920,00
PERSSEH Cold press machine 70mm is the best choice for hypermarkets, departments store, and small workshops. You can extract all kinds of organic oils with this model. Containing 2.2 kW electromotor makes it a special oil extraction machine. It’s possible to press over 100 various seeds by that. It is designed portable to move easily. Its special design as well causes to be used friendly and gently.

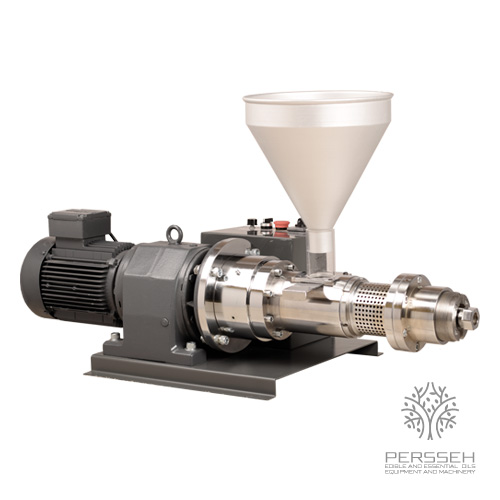

Cold press machine 70mm
PERSSEH Cold press machine 70mm is designed for operation in hypermarkets and oil stores, pharmaceutical companies, farms, etc. This machine has the ability to press all types of oilseeds.
The model name of this machine is taken from the inside diameter of the press part.
How to work…
The method of work in this machine is the cold press so that in this method the oilseed is pressed. As a result of applying this pressure, the oil in the seed is separated from it, and oil extraction is performed without adding any additives to the produced oil. The device is designed and manufactured in such a way that the oil outlet temperature during the oil extraction process is lower than 45 ° C. Experiments show that the oil produced in the cold press method is completely virgin and natural, all the benefits of the oilseed remain in the oil and the tissue molecules of the oil are not damaged. This method is called cold press (cold oil press – cold pressing – cold press oil extraction).
Unparalleled efficiency
With PERSSEH Cold press machine 70mm, raw oilseeds can be pressed by the cold press without any additives so that the output oil has all the benefits of oilseeds. Depending on the type, quality, and size of the seeds, the machine can have a maximum input of 20 kg.
Easy operation, quiet with easy maintenance
Easy operation and being user-friendly is undoubtedly some of the main factors in the popularity of this cold press machine. Since most buyers of this device work in small spaces, shops, and hypermarkets, small workshops, the simplicity of operation and maintenance of the device is very important.
No need to add moisture to the seeds
For oil extraction of sesame and other seeds, there is no need to add moisture to the oilseed.
Ability to press all hard and soft seeds
Another factor in the popularity of this device is the easy adjustment and commissioning for oil extraction from oilseeds. For example, the settings of the machine for oiling sesame are different compared to almond seeds. The reason for this difference is the difference in grain type, size, and percentage of oil in the seed, and so on. The 70 mm cold press machine is engineered in such a way that the operator can easily produce the desired oil.
Adjustable working speed between zero and 50 Hz using an inverter
The operating speed of this device is adjustable. The use of inverter in the design of this device has made the operator easily adjust the speed of the device from zero to 50 Hz, and this issue is very necessary for pressing various grains.
The rotation speed of the motor is regulated by an inverter, which varies from zero to 50 Hz. This makes it possible to achieve maximum yields for different oilseeds by adjusting the speed. Also, the use of inverter has caused the energy consumption of the device to be very low. With the cold press machine 70mm, the pressure of the press can be mechanically adjusted by press parts setting and using different nozzles. The device is designed so that these changes are as simple as possible compared to other similar devices.
Other features of PERSSEH cold press machine 70mm
– Very low power consumption
– Possibility of 24-hour operation
– Adjustable working speed between zero and 50 Hz using an inverter
– Emergency shutdown in the event of abnormal pressure
– Beauty in design, and easy to move
– Use of authentic and high-quality German parts with a hardness of 60 Rockwell
– Powerful electric motor and gearbox
– High lifetime and negligible depreciation
Name | Cold press machine 70mm |
---|---|
Machine type | Cold press |
Cylinder Diameter | 70 mm |
Design type | Screw Extruder |
Cake Shape | As a pallet |
Nominal Feeding Capacity | 20 kg/h |
Engine Power | 2.2 kW |
Voltage | 230 V, single phase |
Rpm (revolutions per minute) | 5-60 ¹/min |
Dimensions (LxWxH) | 1060*480*680 mm |
Weight | 85 kg |
Electrical Power Consumption | At rated power (Rapeseed) approx. 1 kW/h |
Extra Options | Hopper can be equipped with a metal detector |
Applicable for | Rapeseed, Sunflower Seed, Black seed, Soybean, Linseed, Pleasure of Gold, Pumpkin Seed, Walnut, Almond, Pistachios, Poppy Seed, Rubberseed, Loofah, Potato Chips, Kahai, Safflower, Candlenut, Marula, Chia, Moringa, Soldier Fly Larvae, Black Cumin, Apple Seed, Sesame Seed, Karitè/Shea, Peanut, Jatropha/Physic Nut, Hemp, Milk Thistle, Hazelnut, Walnut, Sea Buckthorn, Lemon Seed, Elderberry Seed, Evening Primrose, Pomegranate Seed, Grape Seeds, Mustard, Argan, Cottonseed and so on. |
Components | Electrical Switch Board |
Advantages | Virgin oil extraction without solvents and refining methods |
Guarantee | 12 months |
Delivery | Türkiye, Germany |
